Product Name:

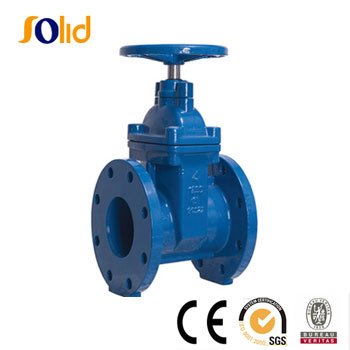

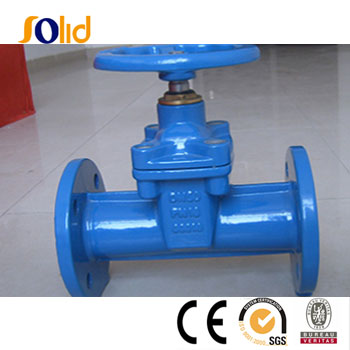

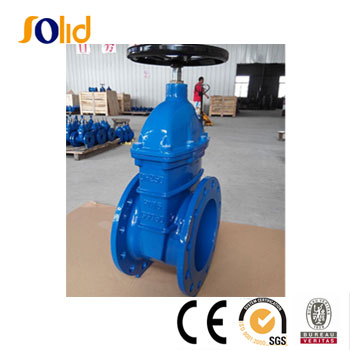

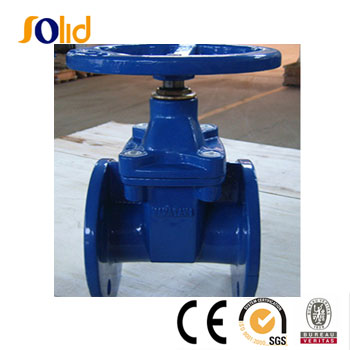

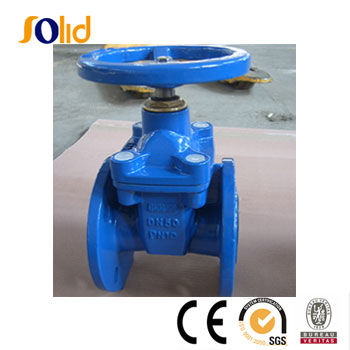

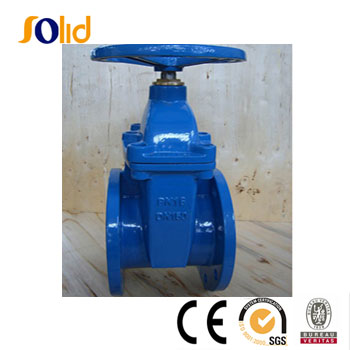

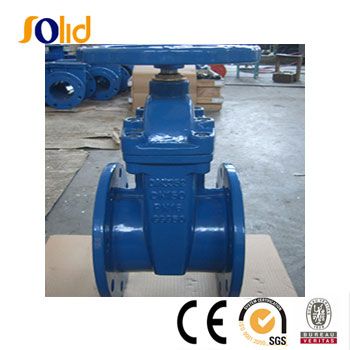

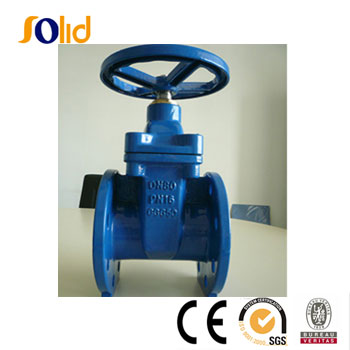

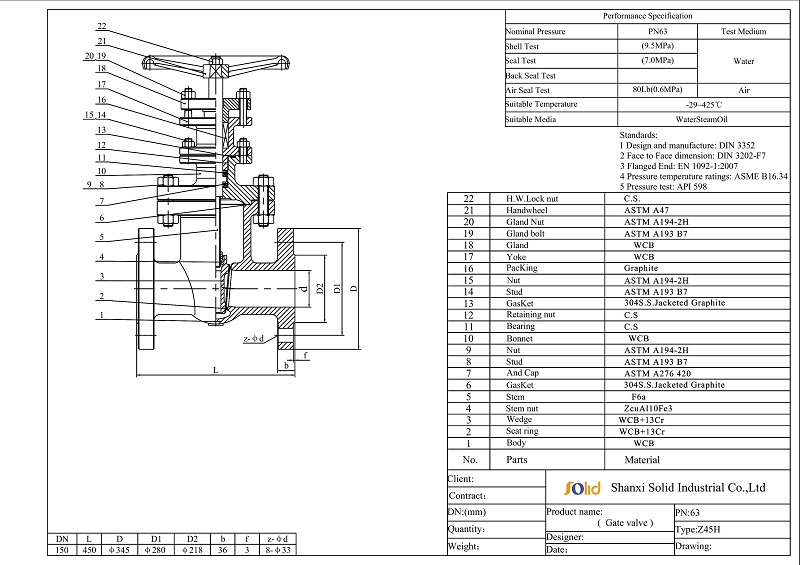

Flanged End Gate Valve
  • gate valve
  • gate valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
  • Flanged End Gate Valve
Describe:

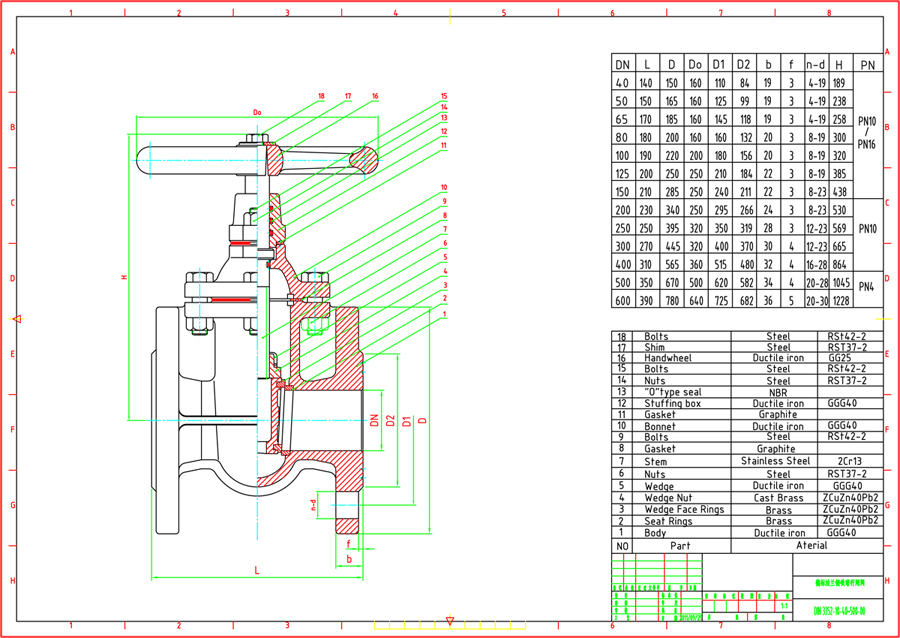

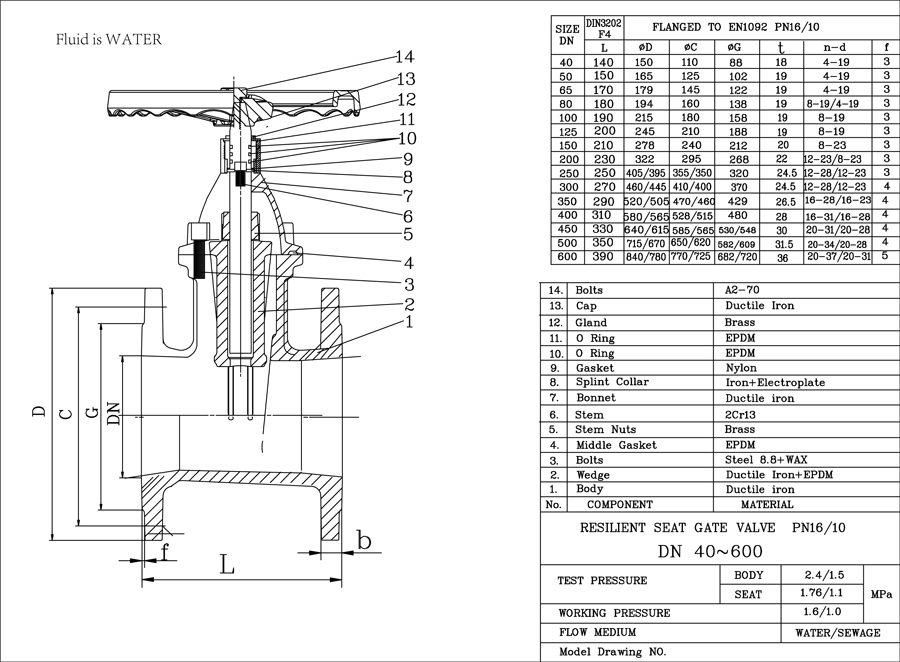

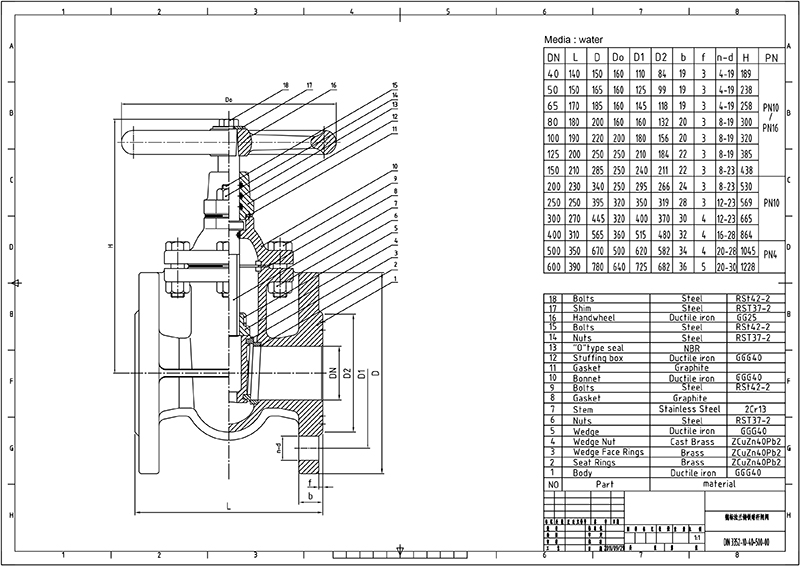

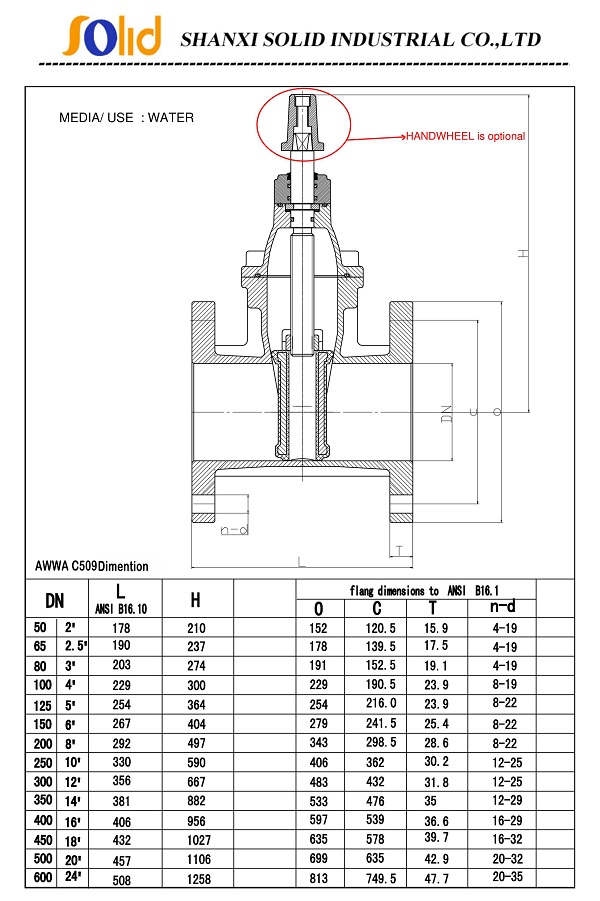

Standard: DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509,AWWA C515

Flange drilling is according to DIN2501, BS4504 and ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

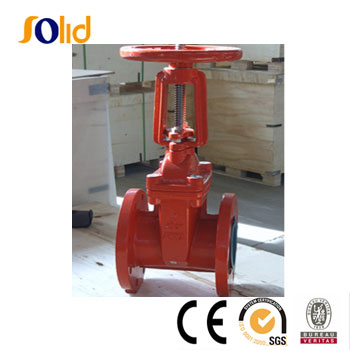

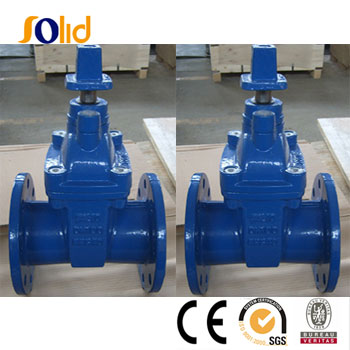

Type: non rising stem / rising stem

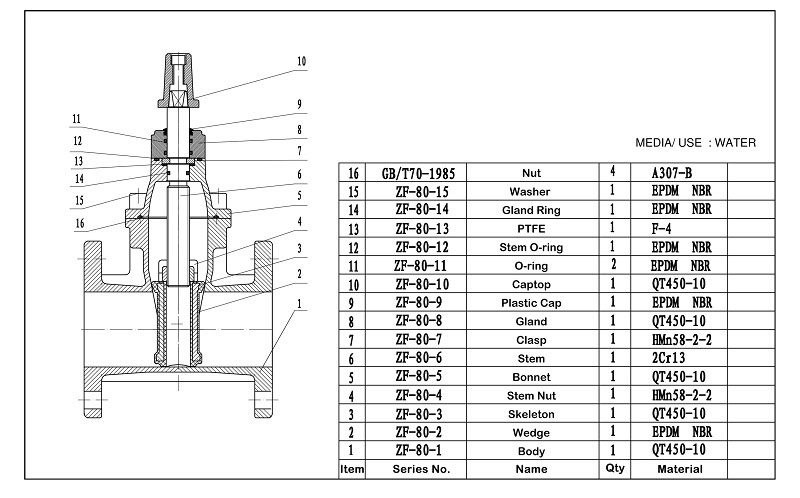

Material:

Body: Ductile iron GGG40/50 or Cast IronGG25

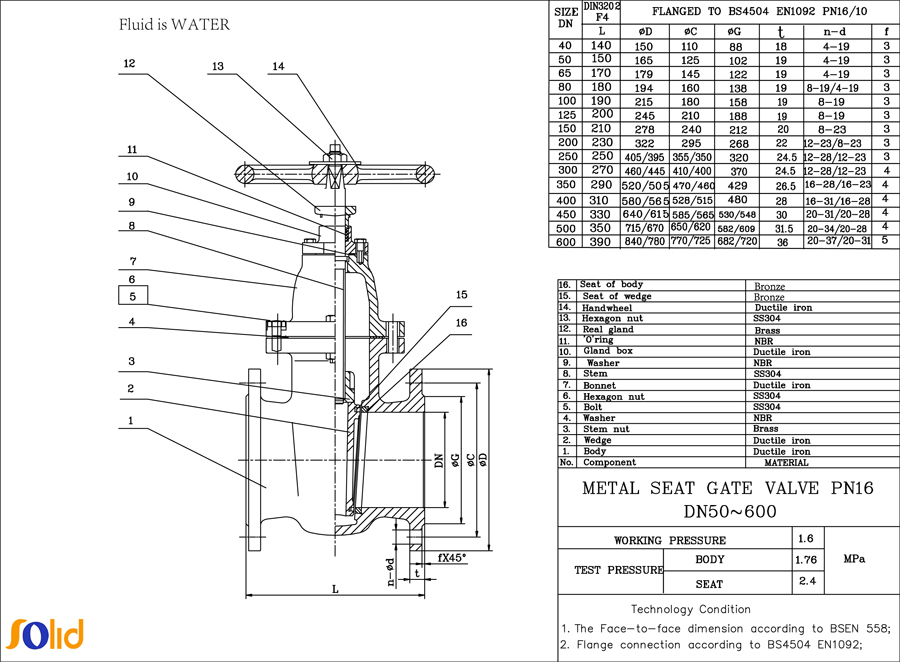

Wedge: Ductile iron GGG40/50+EPDM/NBR or metal seated

Stem: stainless steel 2Cr13 , SS304,SS316

Bolt and Nuts: Carbon Steel with zinc plated or SS304,316

Coating: Internal and external with fusion bonded epoxy coating min250μm

If you want to know more details, please send an email to us to solidvalves@aliyun.com.
