Material: ASTM A216 WCB, ASTM A351 CF8，ASTM A351 CF8M, ASTM A351 CF3，ASTM A351 CF3M, ASTM A352 LCB, ASTM A217 WC6 and ASTM A217 WC9

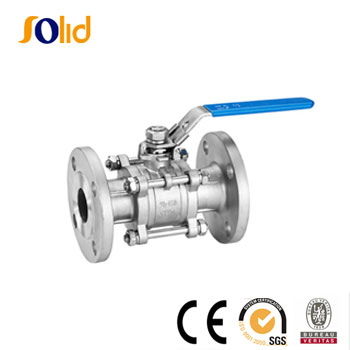

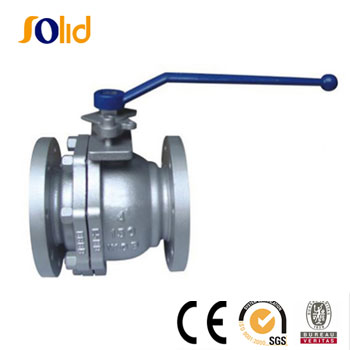

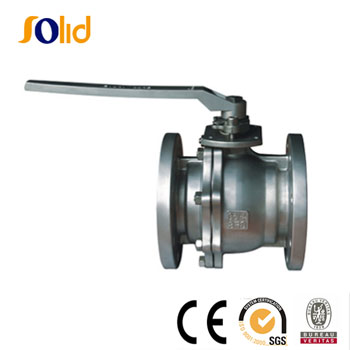

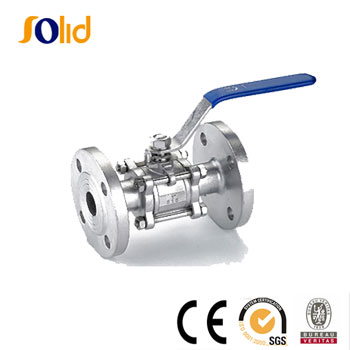

Two/Three-Piece body, floating ball type/Trunnion mounted type
Size: 1/2”-24”
Pressure: 150LB, 300LB, 600LB, 900LB,1500LB
Design and manufacture: ANSI B16.34, API6D and BS 5351
Face to face dimension: ANSI B16.10
Flange end: ANSI B16.5
Test and inspection: API6D or API 598

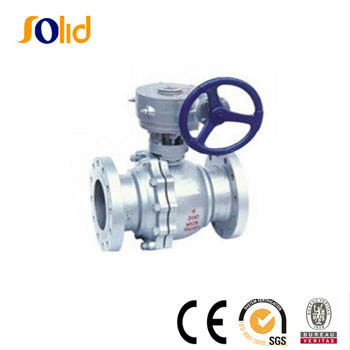

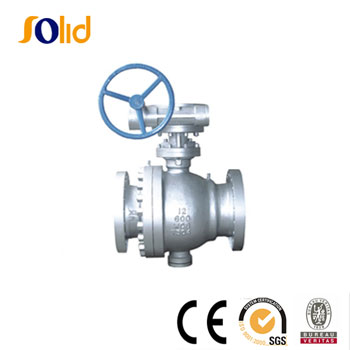

Type of operation: lever, worm gear actuator, electric actuator, pneumatic actuator to ISO 5211 standard.
Standard Specifications
| Design and Manufacture |
API 6D/API 608/BS5351/ISO 17292 |
| Wall Thickness |
API 6D |
| Face-to-Face Dimension |
API 6D |
| Flange End Dimension |
ANSI/ASME B16.5 |
| Inspection & Testing |
API 6D/API 598 |
| Fire Safe Design |
API 607/API 6FA |
| Material |
Nace MR 0175 |
Product Range
| Type |
Floating Ball |
| Body Material |
Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Steel |
| Seat |
Soft Seated: PTFE, RPTFE, Nylon, PEEK, PPL, Delrin, Devlon, PCTFE, PTFE Glass Filled, PTFE Carbon Filled |
| Metal Seated: Stellite, Tunsten Carbide, Chrome Carbide |
| Size Range |
1/2”-6” (DN15-DN150) |
| Class Rating |
ANSI Class 150-1500 |
| End Connection |
Flanged, Butt Welding |
| Operator |
Lever, Worm Gear, Electric, Penumatic |
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
| |
|
